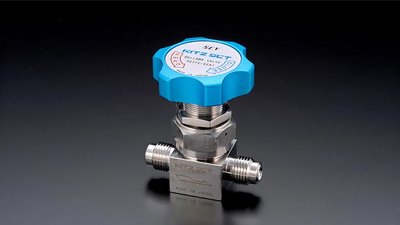

IB Bellows Valves

Features

• The proprietary seat shape serves to reduce particle generation from the disk and improves durability.
• Smaller dead space enables shorter purge time.
• The IB series can be used not only in gas supply systems but also in exhaust systems. Unique specifications such as high temperature, high corrosion resistance, and variable flow rate can also be accommodated.

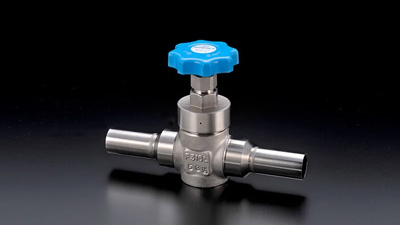

SBB Bellows Valves

Straight-type

The SBB series of pipe size bellows valves have a compact design and are intended for use in high Cv and high durability supply lines.

Features

• We offer not only all purpose butt weld connection but also flange connections and union connecitons. © Achieving reduced weight with forged valve body.
• Adopted a seat structure to reduce gas pooling and particle shedding.
• By setting the air supply inlet on the top of the actuator, there is no concern over piping direction.
• Purge port options available for the Inlet, Outlet, or Both.

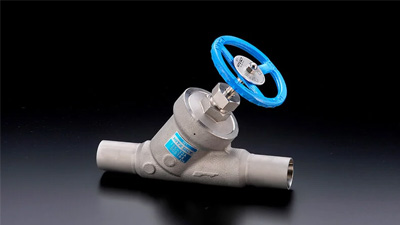

IBC, IBD, IBE Bellows Valves

Large-size Straight Type

The  IBC/IBD/IBE series, like the SBB series, consist of larger pipe size bellows valves that, while having a compact design, high Cv value, and high durability, are premised on use in supply lines.

Features

• KITZ SCT's Y shape structure yields higher Cv than conventional S shape structure.
• The inner surfaces of the IBC/IBD valves are uniformly polished whole-surface cylindrical grinding.
• Because of their screw-sleeve structure with built-in bearing, the IBE valves require less torque on the handle for easy operation.
• Adopted a seat structure to reduce gas pooling and particle shedding.
• By setting the air supply inlet on the top of the actuator, there is no concern over piping direction.
• Realization of more compact design through positioning the actuator on the side.
• Purge port options available for the Inlet, Outlet, or Both.
