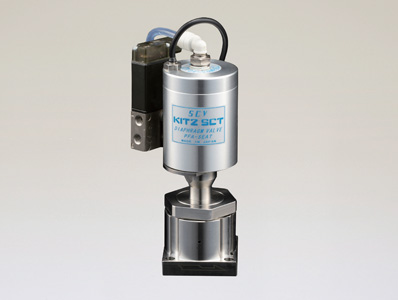

TD-S Series

SCV Submersible Valves®

The TD-S series of SCV submersible valves®, incorporating our unique technology, can be used in high-temperature environments compatible with integrated gas systems. They are suitable for supplying precursors in atomic layer deposition (ALD) processes where consistent flow rate reproducibility is required.

Features

Compatible with high-temperature environments

• Efficient heating is possible because the entire valve can be used in high-temperature environments up to 200˚C.

Stable Cv value

• Cv values are 100% factory-adjusted. With little variation in the Cv value during use, stable gas flow rates can be obtained.
• Initial Cv value error within ±5%; variation during use within ±10%

Adoption of PFA seat

• PFA with excellent heat resistance and corrosion resistance is adopted as a seat material. It can be used for a wide variety of gases.

High durability

• Performance value of 20 million cycles*
• Compared with the metal seat type, adoption of the PFA seat improves durability performance, including excellent seat leak rates and extended life cycles in high-temperature environments.
• *Our pneumatic valve test performance (test conditions): fluid: N2, charged pressure: 0.7MPa(G), atmospheric temperature: 200˚C

다운로드

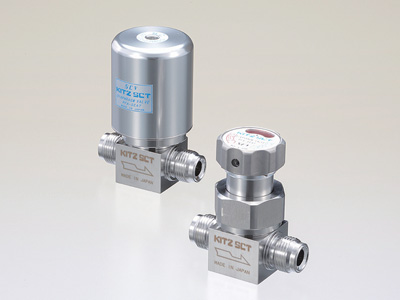

KD-S Series

SCV Submersible Valves®

Our KD-S SCV Submersible Valves® series, using our unique technology, provides flow rate reproducibility in high-temperature environments; making them suitable for supplying precursors in atomic layer deposition (ALD) processes.

Features

Compatible with high-temperature environments

• The entire valve can be submerged in high-temperature environments up to 200  °C, allowing for efficient heating.

Flow rate reproducibility

• Valve Cv values are factory-set. Flow rates stay stable during use and consistent with replacements.
• Initial Cv value error within ±5%; variation during use within ±10%　

PFA seat

• PFA seat provides excellent heat and corrosion resistance, and is compatible with a wide variety of gases.

High durability

• Cycle life of 5 million.*
• PFA seat improves valve performance in comparison with a metal seat.
• *Our pneumatic valve test performance (test conditions): fluid: N2, charged pressure: 101psig (0.7MPa(G)), atmospheric temperature: 200˚C

다운로드

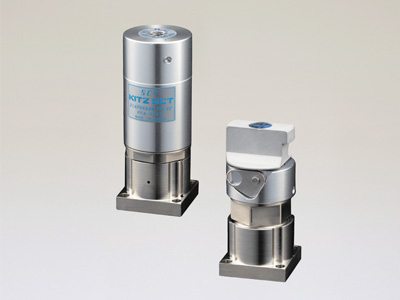

TDF Series

High-Speed High-Cycle Life Valves

The TDF series are high-purity gas-compatible diaphragm valves that combine high-speed opening/closing operation, high durability, heat resistance, and Cv stability required for atomic layer deposition (ALD) and atomic layer etch (ALE) processes.

Features

High-speed opening/closing, and high response stability

• Realizes valve total response time 18ms* and response stability ±2ms* after durability cycles.
• * Performance values according to our testing methods

Compatible with high-temperature fluids

• Adoption of a structure that reduces heat transfer to the actuator enables usage with high-temperature fluids up to 220°C*.
• * Body Temperature up to 200°C with solenoid valve and sensor installed.

Stable Cv value

• Adoption of a structure and seat material in consideration of thermal influence ensures Cv 0.5* at 220°C.
• Cv values are 100% factory-adjusted. With little variation in Cv value during use, stable gas flow rates can be obtained.
• * Initial Cv value error and variation during use within ±5%

High cycle life

• With a 220°C high-temperature body temperature rating, and durability test performance value of one hundred million cycles or more* achieved as a result our unique technology.
• *Our test performance (test conditions): fluid N2, charged pressure 0.25MPa(G), wetted area temperature 220°C

다운로드
