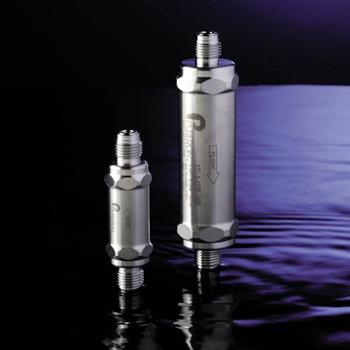

Low Pressure Loss PTFE Gas Filter

High Efficiency Filtration

• Stable efficiency filtration with two-layer filtration film made of PTFE causing little stretches by aging or vibration. 0.01 µm particle capture test conducted by nucleus particle counter for all products.

Low Pressure Loss

• High flow rate and low pressure loss by PTFE's two-layer structure and high hole rate. Much lower pressure loss especially for TF-4 series by large effective filtration area from film laminate structure.

High Corrosion Resistance

• Fluorine resin used for element film, element support, O-ring etc., while SUS316L used for housing and every gas contacting part polished to R max 0.5µm or less and passivation process.

다운로드

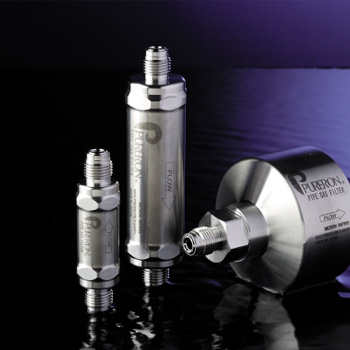

Hi Accuracy Filtration low Pressure loss PTFE Gas Filter

High Efficiency Filtration

• Stable efficiency filtration with two-layer filtration film made of PTFE causing little stretches by aging or vibration. 0.003µm particle capture test conducted by nucleus particle counter for all products.

Low Pressure Loss

• High flow rate and low pressure loss by PTFE's two-layer structure and high hole rate. Much lower pressure loss especially for STF-4 series by large effective filtration area from film laminate structure.

High Corrosion Resistance

• Fluorine resin used for element film, element support, 0-ring etc., while SUS316L used for housing and every gas contacting part polished to R max 0.5µm or less and passivation process.

다운로드

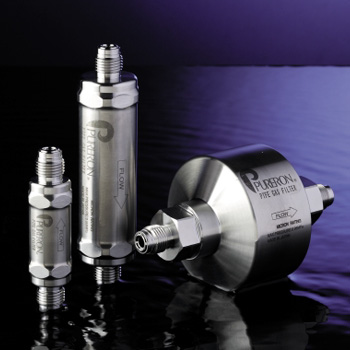

PTFE Gas Filter for High Withstanding Pressure

High Efficiency Filtration

• Stable efficiency filtration with two-layer filtration film made of PTFE causing little stretches by aging or vibration. 0.003µm particle capture test conducted by nucleus particle counter for all products.

Low Pressure Loss

• High flow rate and low pressure loss by PTFE's two-layer structure and high hole rate.

High Corrosion Resistance

• Fluorine resin used for element film, element support, 0-ring etc., while SUS316L used for housing and every gas contacting part polished to R max 0.5µm or less and passivation process.
