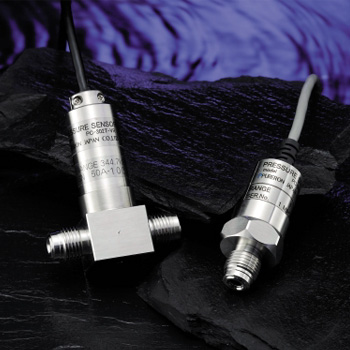

PC-302 series is high accuracy pressure sensor of ± 0.25% at full scale. Gauge or absolute pressure types are available with high temperature option. Dedicated digital panel meter (L0/Hi 2-stage digital strain gauge meter) is available as display device.
Wide Range of Measurement
Variety of pressure range form 172KPa to 20,684Pa
High Accuracy
High accuracy pressure detection 0.25% or less with linearity, hysteresis and repeatability all included (100PSIG or more)
Wide Temperature Range
Temperature insensitive design for strain gauge detecting pressure allowing wide temperature range operation. Temperature range expandable by selecting high temperature option
High Corrosion Resistance
Electrochemical polished SUS316L used for gas contacting area realizing high corrosion resistance against various corrosive medias
Long Lifetime
Robust construction, pressure detecting diaphragm processed with sensor body.
