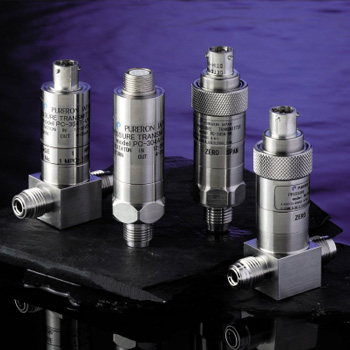

PC-3aa series is high accuracy pressure sensor with superior temperature characteristic. SUS316L is used for gas (fluid) contacting area for superior corrosion resistance. Selectable output either 4 to 2amA, a to 5V or a to 1 av enables easy connection with various digital panel meters and programmable controllers.
High Accuracy/ High Reliability
High accuracy and reliability with a.25% maximum deviation from best fit line affected by linearity hysteresis repeatability.
Wide Measurement Range
Wide pressure range available; Gauge pressure a to 172.4KPa (1.76kgf/cm 2) to 2a,684KPa (21 akgf/cm 2) absolute pressure from a to 2,586 torr. Vacuum draw available as option.
Long Lifetime
Cycle duration test, 1,aaa,aaa times or more, conducted in eachrange.
Pressure Transmitter
PC-3aa series is high accuracy pressure sensor with superior temperature characteristic. SUS316L is used for gas (fluid) contacting area for superior corrosion resistance. Selectable output either 4 to 2amA, a to 5V or a to 1 av enables easy connection with various digital panel meters and programmable controllers.
High Accuracy/ High Reliability
Wide Measurement Range
Long Lifetime
I/0
