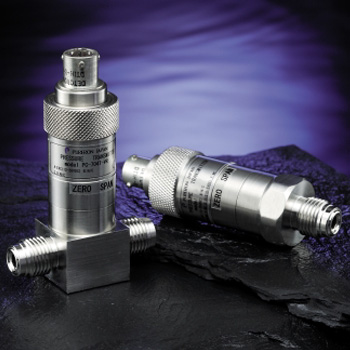

Noise Resistant Pressure Transmitter

PC-700 series gives industry-leading high frequency noise resistance performance by Pureron's unique electromagnetic shield configuration, EMI filter, and lead-through capacitor. Selectable current output of 4 to 20mA or Oto 5V is especially suitable for long distance transmission in electrically noisy environment. It is also high accuracy pressure sensor with superior temperature characteristic.

High Noise Resistance

• Strong noise resistance performance against high frequency by Pureron's unique electromagnetic shield configuration, EMI filter and lead-through capacitor.

High Accuracy / High Reliability

• High accuracy and high reliability with 0.25% maximum deviation from best fit line affected by linearity, hysteresis repeatability.

Wide Measurement Range

• ewide pressure range available; Gauge pressure O to 172.4KPa (1.76kgf/cm 2) to 20,684KPa (210.9kgf/cm2), absolute pressure from Oto 2,586 torr. Vacuum draw available as option.

Long Lifetime

• Cycle duration test, 1,000,000 times or more, conducted in each range.

I/0

• Output selectable 4 to 20mA or O to 5V easily connected with various panel meters and programmable controllers.
