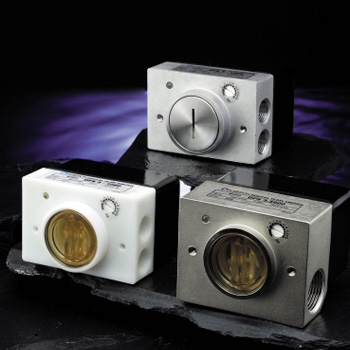

• Variety of Models: Wide range of applications is supported with three body materials, resin, metal or stainless and two
• detection methods, magnetic or iron piece proximity. Flow rate can be set from low to high range (0.2 to 120Umin) by adding option.
• Visual Flow Check: Rotor movement can be checked through transparent window (except DFS3-1500/2500). Maintenance such as cleaning is easy with removable rotor cap without disassembling piping.
• High Responsiveness: Relay operates in 500ms and output indication turns red at the same time after flow rate falls under setting level.
• Easy Flow Rate Setting: Flow rate can be indicated in digital display and operation from remote location is easy in combination use with digital flow meter DFM2 series.
• Orientation Free Installation: There is no restriction to flow direction of fluid with rotor rotating method applied. So there is no restriction to installation orientation.
• Open Collector Output Added: Power relay output capacity for warning is improved to drive heavy load. Open collector output is added to respond to minimal load of programmable controller etc.

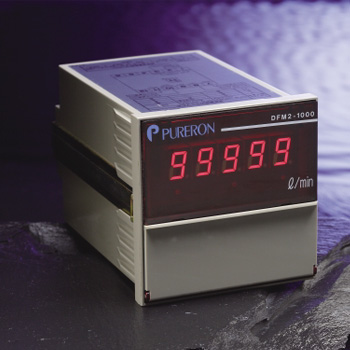

Digital Flow Meter

This digital flow meter receives output pulse from digital flow switch or sensor and displays instantaneous flow rate of liquid.

• Easy flow rate reading with 1 O mm character height LED
• wide range from 0.2 to 120L/min applicable
• compact 72 x 72mm DIN size for front panel
• Flow rate range setting by switch operation

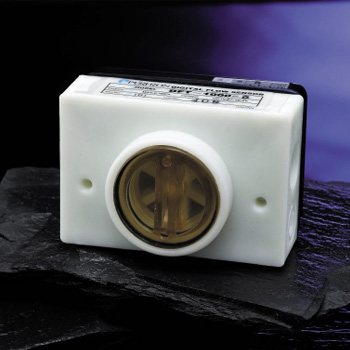

Digital Flow Sensor

DFT series is flow rate sensor converting flow rate of fluid to electronic pulse signal.

• Flow rate can be indicated in digital display and measurement from remote location is easy in combination use with digital flow meter.
• Noise-resistant
• Visual flow check possible through transparent window
• Two flow rate range setting; 0.5 to 5L/min or 205 to 25L/min
• Durable against water stain and dust
• Easy maintenance withremovable rotor cap without disassembling piping
• Drip-proof seal structure
